Fast Temperature Measuring with "Efaqs"

Fast pyrometer "Efaqs".
© Fraunhofer IWS
Fast pyrometer "Efaqs".

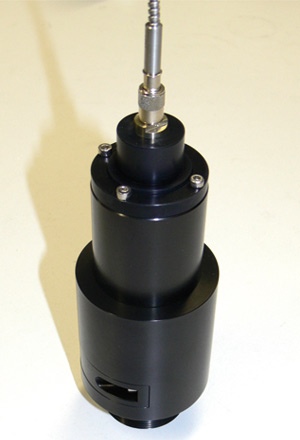

Head of the pyrometers "Efaqs".
© Fraunhofer IWS
Head of the pyrometers "Efaqs".

Among the systems of Fraunhofer IWS the fast pyrometric system "Efaqs" has been developed to get temperature information about very fast processes. This system is able to measure low temperatures from 160 °C and above with a sample rate lower than 30 μs. Since "Emaqs" has been used for laser hardening and laser cladding so far, the much faster "Efaqs" is applied more and more for laser soldering machines. "Efaqs" is typically used in combination with the "LOMPOCpro" control.


Application

  • Controlled laser soldering, laser hardening, laser annealing, and plastics welding


Specifications

  • 19“-insert-PC with integrated optical sensor
  • Optics connected to optical fibre with SMD-connector
  • Measuring spot size adaptable
  • Sensitive at 1.2 – 1.7 μm
  • sampling rate down to 50 μs
  • Low noise signal transmitting over long distances
  • Temperature ranges from 160 °C adaptable to applications
